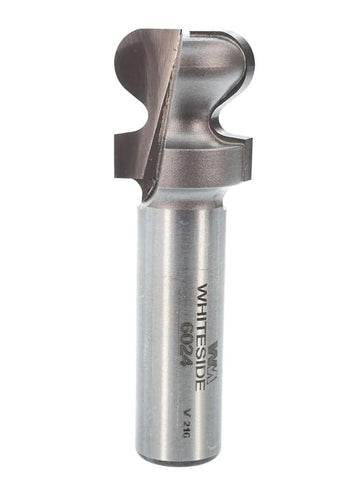

Drawer Pull - European Style

1/2"SH, 1/4"R, 13/16"CL

This bit cuts a small European Style groove across the bottom of a desk drawer allowing a place for your fingers to pull open the drawer.

Materials: Natural woods, composite woods

Recommended RPM: 12,000-14,000 (max 16,000)

Part #	Large Radius	Large Dia.	Cutting Length	Overall Length
1/2" SHANK
6024	3/16"	3/4"	7/8"	2-3/8"
6026	1/4"	1-1/2"	13/16"	2-3/8"

Part #	Shank Dia.	Large Dia.	Cutting Length	Overall Length
6032	1/2"	1-1/4"	3/4"	2-1/2"

Bearing Number: B3

Part #	Radius	Large Dia.	Cutting Length	Overall Length
1/2" SHANK
6045	7/32"	1-1/4"	13/16"	2-7/8"
6046	3/8"	1-7/16"	1-1/8"	3-3/8"

Use Bearing (B16 for #6045, B18 for #6046) and Lock Collar (LC-1/2) on shank for template work.

6024

 
