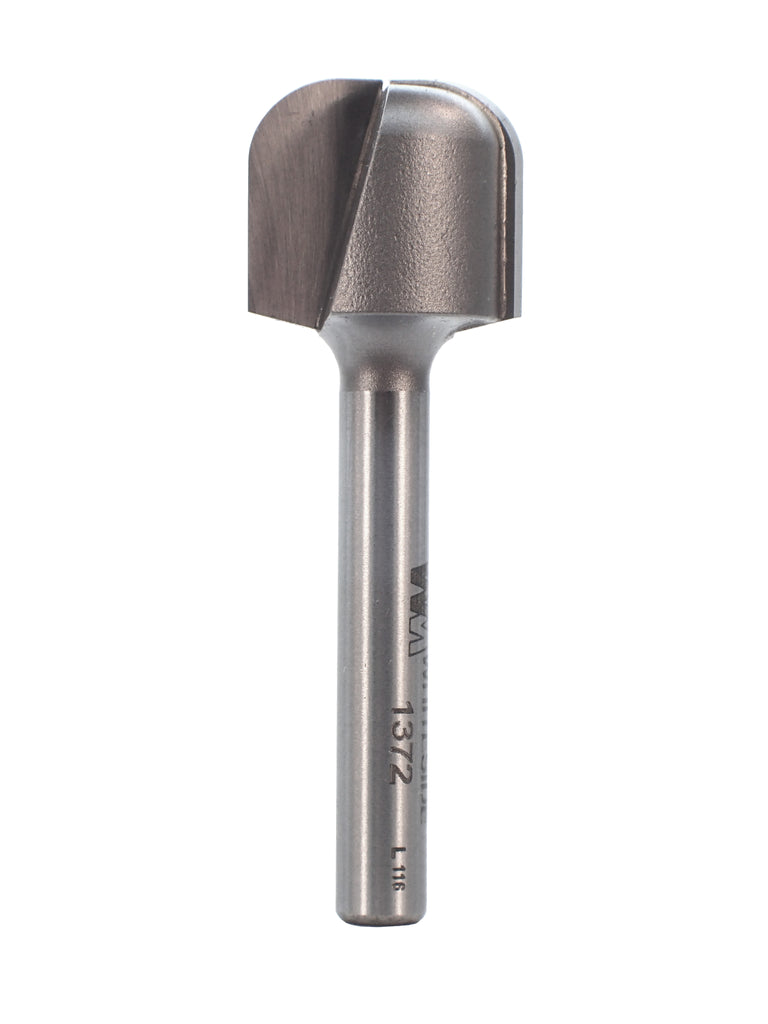

1372
Bowl & Tray Bit
1/4"SH, 1/4"R, 3/4"CD
Product Description

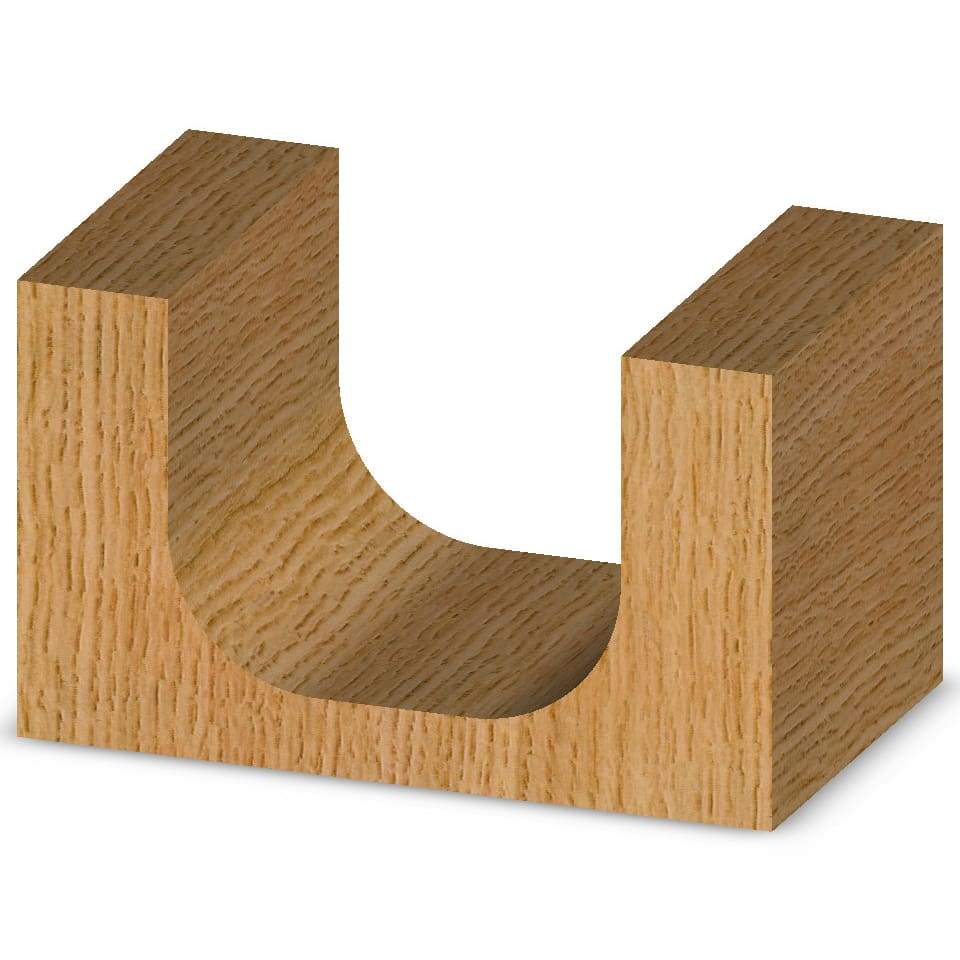

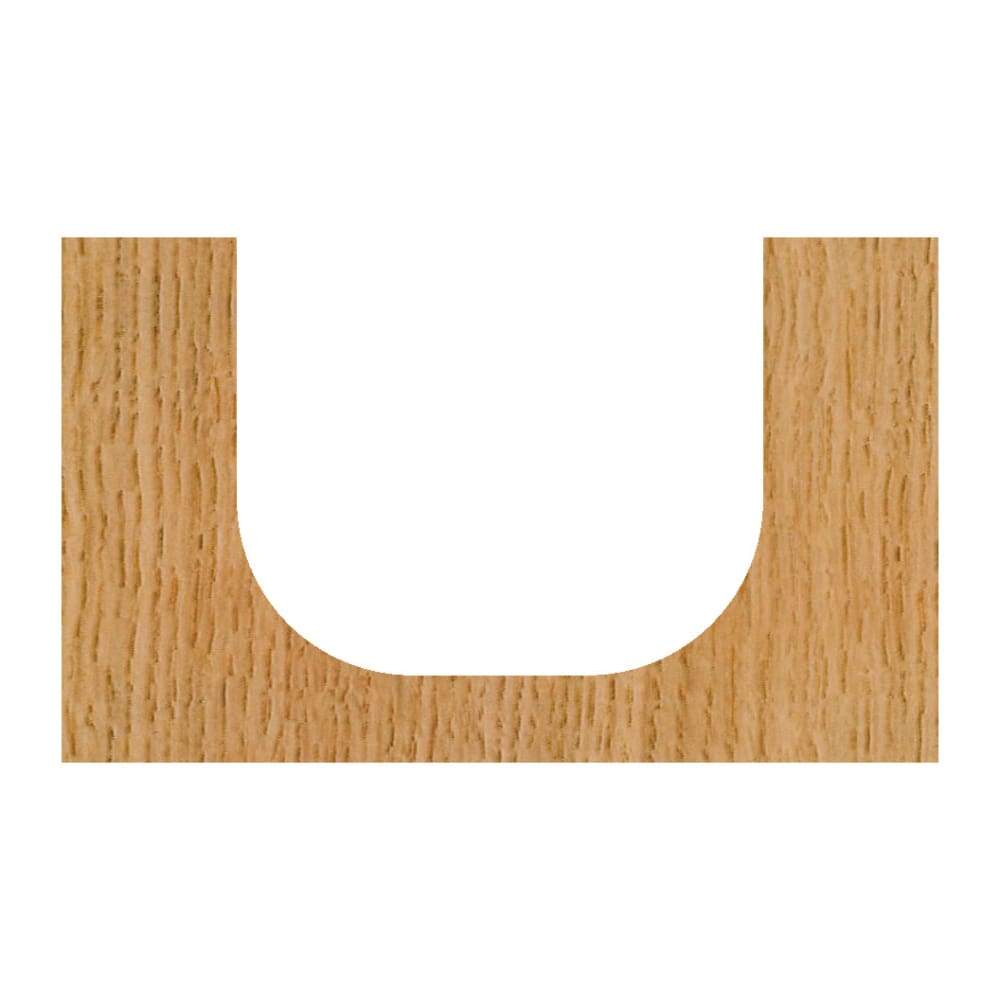

Bowl and Tray bits were designed as an alternate cutting shape to the traditional Round Nose. These bits have a flat bottom so that ridges are not left when cutting out the bottom of a bowl or serving tray.
Materials: Natural woods, composite woods, hard plastics, thin aluminum
Recommended RPM: 16,000-18,000 (max 24,000)
PDF Instructions
PDF Instructions 2
Similar Sizes
| Part # | Cutting Dia. | Radius | Cutting Length | Overall Length |
|---|---|---|---|---|
| 1/4" SHANK | ||||
| 1370 | 7/16" | 1/8" | 5/16" | 2-1/8" |
| 1372 | 3/4" | 1/4" | 5/8" | 2-3/8" |
| * 1372B | 3/4" | 1/4" | 5/8" | 2-3/8" |
| 1/2" SHANK | ||||
| 1374 | 3/4" | 1/4" | 5/8" | 2-3/8" |
| * 1374B | 3/4" | 1/4" | 5/8" | 2-3/8" |
| 1376 | 1-1/4" | 1/4" | 1/2" | 2-1/4" |
| * 1376B | 1-1/4" | 1/4" | 1/2" | 2-1/4" |
* Supplied with bearing on shank for pattern template routing.
