2006

Roundover Bit

1/2"SH, 1/4"R, 1/2"CL

Product Description

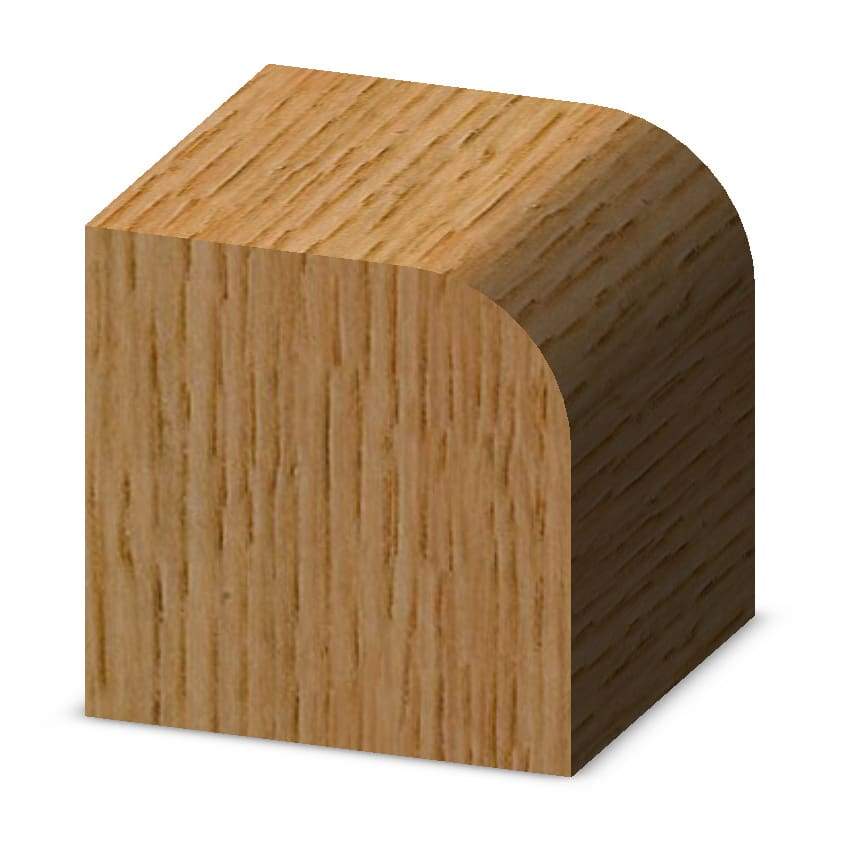

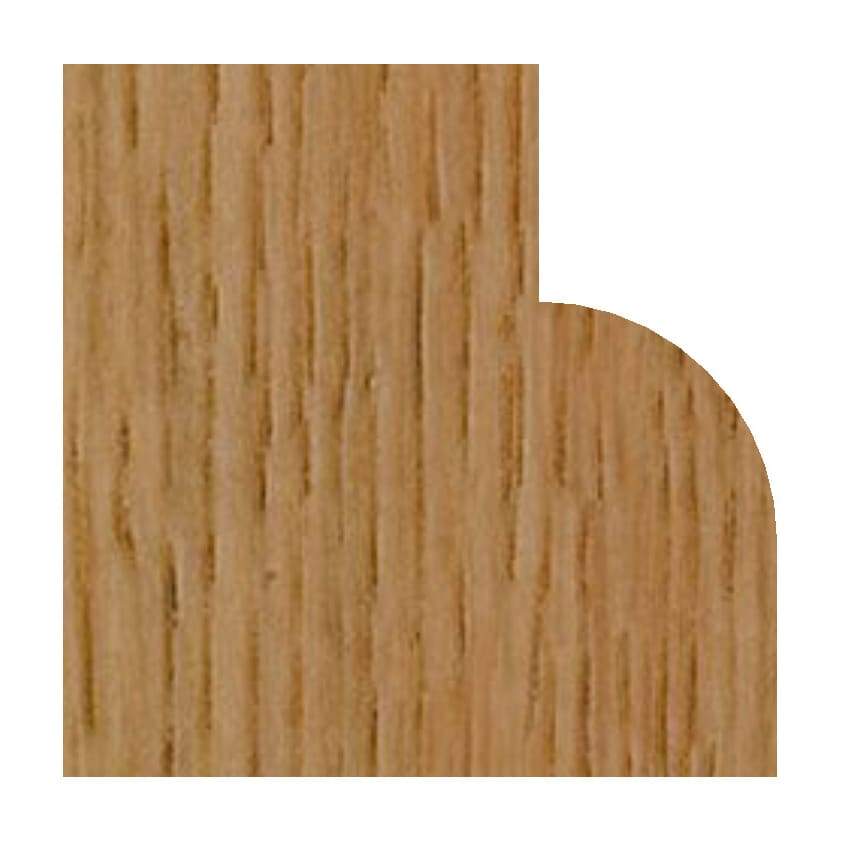

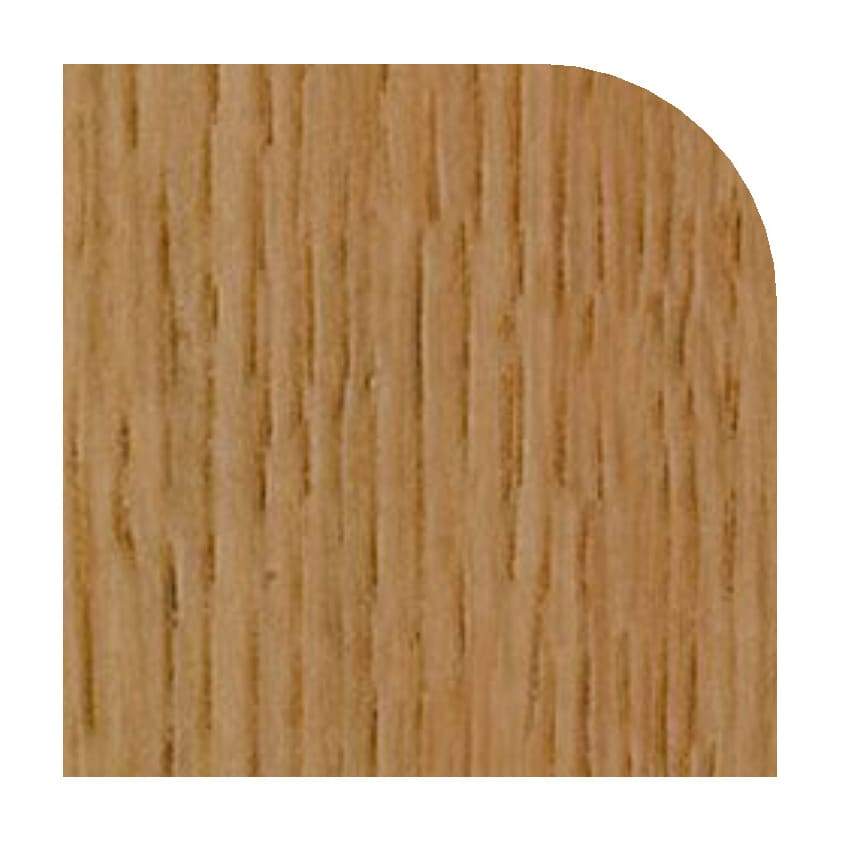

Roundover bits provide a curved edge to your workpiece and are the most popular type of edge forming bit.

Materials: Natural woods, composite woods, hard plastics

Recommended RPM: 14,000-16,000 (max 18,000)

Roundover Part # Beading Part # Radius Large Dia. Cutting Length
1/4" SHANK
2000A 2100A 1/16" 5/8" 1/2"
2000B - 3/32" 11/16" 1/2"
2000C 2100C 1/8" 3/4" 1/2"
2000D 2100D 5/32" 13/16" 1/2"
2000 2100 3/16" 7/8" 1/2"
2001 2101 1/4" 1" 1/2"
2002 2102 5/16" 1-1/8" 1/2"
2003 2103 3/8" 1-1/4" 5/8"
2004 2104 1/2" 1-1/2" 3/4"
1/2" SHANK
2005C 2105C 1/8" 3/4" 1/2"
2005 2105 3/16" 7/8" 1/2"
2006 2106 1/4" 1" 1/2"
2007 2107 5/16" 1-1/8" 1/2"
2008 2108 3/8" 1-1/4" 5/8"
2008A - 7/16" 1-3/8" 5/8"
2009 2109 1/2" 1-1/2" 3/4"
2009A - 5/8" 1-3/4" 1"
2009B - 9/16" 1-5/8" 3/4"
2010 2110 3/4" 2" 1"
2011 - 7/8" 2-1/4" 1-1/8"
2012 - 1" 2-1/2" 1-5/16"
2014 - 1-1/4" 3-1/4" 1-3/4"
2015 - 1-3/8" 3-1/2" 1-3/4"
2016 - 1-1/2" 3-3/4" 1-7/8"

Roundover Bearing: B3; B4 for 2014, 2015, 2016

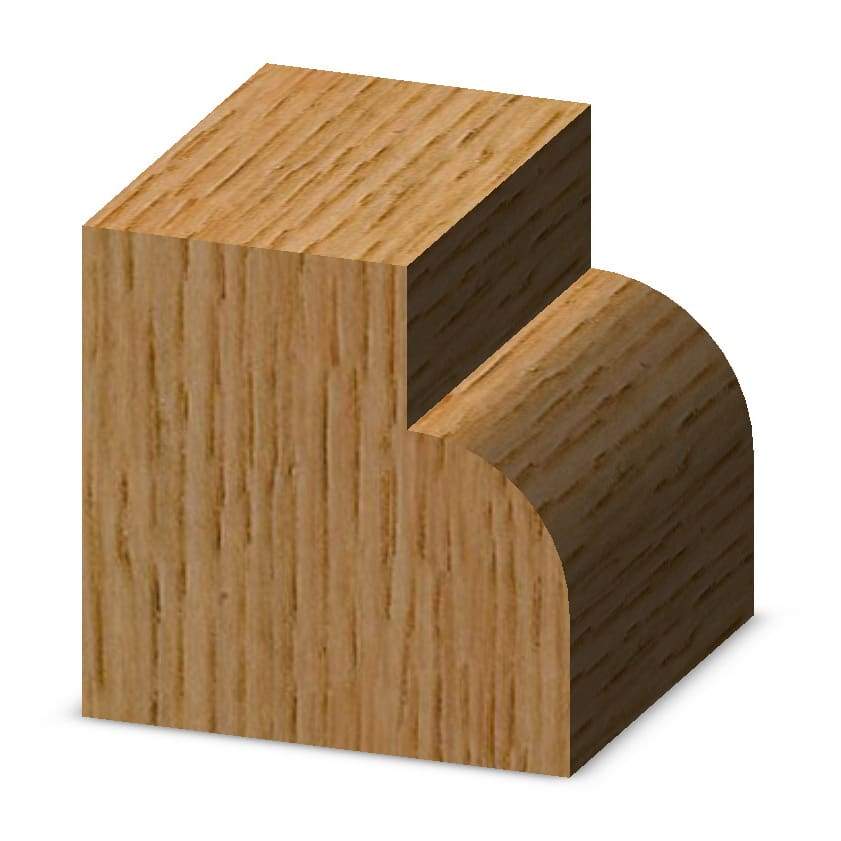

Beading Bearing: B2
