2300
Edge Bevel
1/4"SH, 15°, 1/2"CL, 7/8"LD
Product Description

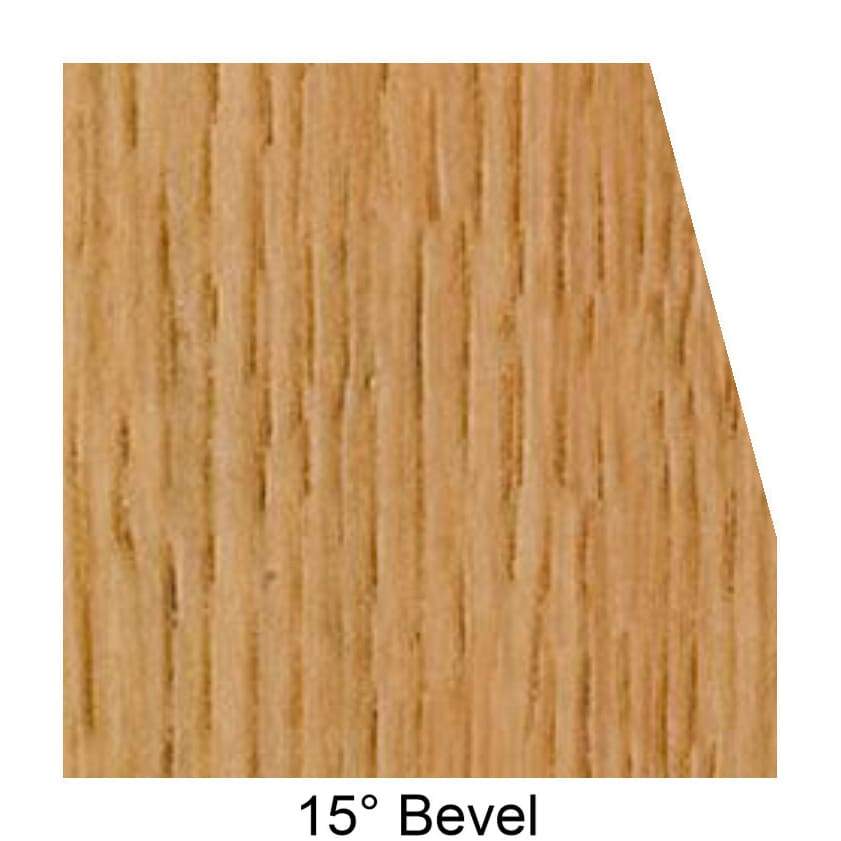

Similar to Chamfer bits, Edge Bevel bits provide a very small angle when used on your workpiece.
Materials: Natural woods, composite woods, hard plastics
Recommended RPM: 14,000-16,000 (max 18,000)
Similar Sizes
| Part # | Degree of Angle | Cutting Length | Cutting Height | Large Dia. |
|---|---|---|---|---|
| 1/4" SHANK | ||||
| * 2298 | 7° | 3/8" | 3/8" | 5/8" |
| 2300 | 15° | 1/2" | 1/2" | 7/8" |
| * 2300A | 15° | 1/4" | 1/4" | 3/4" |
| 2301 | 25° | 9/16" | 1/2" | 1" |
| 1 2308 | 30° | 7/8" | 3/4" | 1-3/8" |
| 1/2" SHANK | ||||
| 3 2325 | 15° | 1" | 15/16" | 1-1/8" |
| 2 2307 | 22.5° | 15/16" | 7/8" | 1-1/4" |
| 1 2309 | 30° | 7/8" | 3/4" | 1-3/8" |
| 2318 | 60° | 1-1/8" | 9/16" | 2-1/2" |
Bearing Number: B3
* Used on Laminate Trim
1 Used for six sided boxes
2 Used for eight sided boxes
3 Used for twelve sided boxes
