3248
Edge Beading Bit
1/4"SH, 5/16"BD, 5/8"CL
Product Description

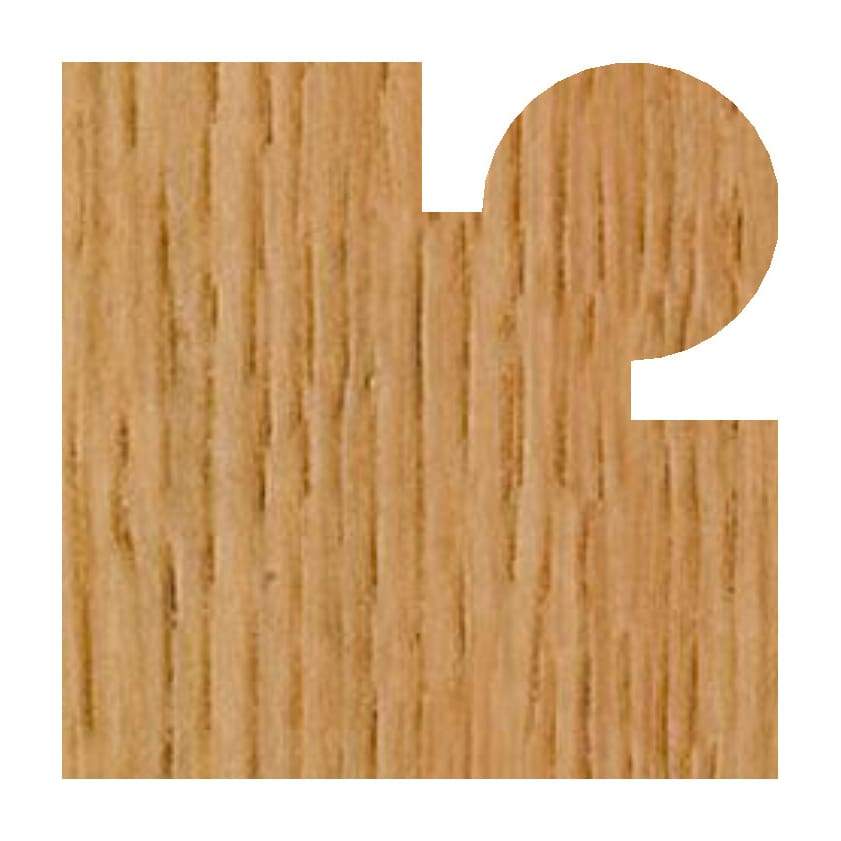

An Edge Beading bit creates a bead on the edge of your work piece to soften the edge. The pattern leaves a half rounded edge. Making two passes will make a 5/16" bead on the edge.
Materials: Natural woods, composite woods, hard plastics
Recommended RPM: 14,000-16,000 (max 18,000)
Similar Sizes
| Part # | Large Dia. | Bead Dia. | Cutting Length | Overall Length |
|---|---|---|---|---|
| 1/4" SHANK | ||||
| 3240 | 7/8" | 1/8" | 9/16" | 2" |
| 3244 | 7/8" | 1/4" | 9/16" | 2" |
| 3248 | 1" | 5/16" | 5/8" | 2-1/4" |
| 3252 | 1-1/16" | 3/8" | 3/4" | 2-1/4" |
| 3256 | 1-1/16" | 1/2" | 3/4" | 2-1/4" |
| 1/2" SHANK | ||||
| 3242 | 7/8" | 1/8" | 9/16" | 2-1/4" |
| 3246 | 7/8" | 1/4" | 9/16" | 2-1/4" |
| 3250 | 1" | 5/16" | 5/8" | 2-1/4" |
| 3254 | 1-1/16" | 3/8" | 3/4" | 2-1/2" |
| 3258 | 1-1/16" | 1/2" | 3/4" | 2-1/2" |
| 3260 | 1-3/8" | 5/8" | 1" | 2-5/8" |
| 3262 | 1-1/2" | 3/4" | 1-1/8" | 3" |
Bearing Number: B3
