Vee Panel Groove Bit

1/2"SH, 1"CL, 1-5/8"LD

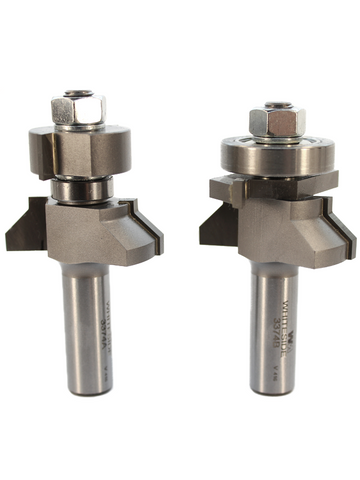

The 3374B is the bit that cuts the groove in the Vee Panel Tongue and Groove set (part #3374).

Materials: Natural woods, composite woods

Recommended RPM: 12,000-14,000 (max 16,000)

Part #	Shank Dia.	Material Thickness	Large Dia.	Cutting Length	Overall Length
3374	1/2"	5/8" - 1" *	1-5/8"	1"	2-3/4"

Order 3374 for two piece set.

Order 3374A for Tongue cutter or 3374B for Groove cutter.

* Material over 1" thick requires a second cut on the tongue profile to waste away excess stock.

3374

3374A

 
