6006
Classical Stile & Rail Set
1/2"SH, 7/8"CL, 3/8" Reveal
Product Description

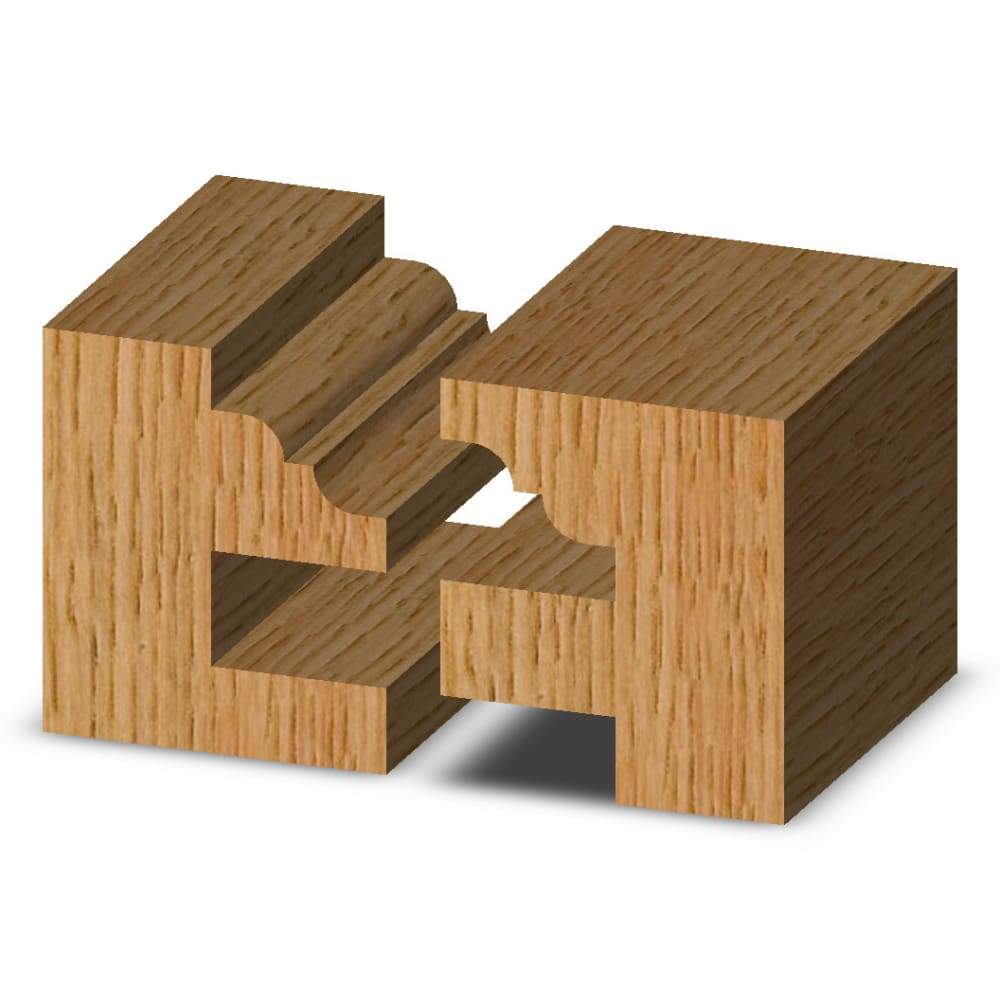

Make full size Stile and Rail joints on your router table. The interlocking design plus the raised panel groove are both cut in one pass. Ball bearing guides control the cutting depth and also allow use on rounded, arched, or special shaped doors. With these two piece sets, simply switch router bits to change from cutting stiles to cutting rails. Features a 1/4" tall x 3/8" deep tongue. Ideal for stock from 5/8” to 7/8” thick.
Materials: Natural woods, composite woods
Recommended RPM: 12,000-14,000 (max 16,000)
Similar Sizes
Full Size Stile & Rail
| Part # | Pattern | Reveal Width |
Cutting Length |
Large Dia. |
|---|---|---|---|---|
| 1/2" SHANK | ||||
| 5990 | Shaker | 3/8" | 13/16" | 1-5/8" |
| 5992 | Shaker | 3/8" | 13/16" | 1-5/8" |
| 6008 | 15° Shaker | 3/8" | 1" | 1-5/8" |
| 6009 | 15° Shaker | 3/8" | 1" | 1-5/8" |
| 6001 | Round | 1/4" | 1" | 1-5/8" |
| 6002 | Ogee | 3/8" | 7/8" | 1-5/8" |
| 6003 | Bead | 3/8" | 7/8" | 1-5/8" |
| 6004 | Straight | 3/8" | 7/8" | 1-5/8" |
| 6005 | Traditional | 3/8" | 7/8" | 1-5/8" |
| 6006 | Classical | 3/8" | 7/8" | 1-5/8" |
For Individual bits:
Stile Cutters: 6001A, 6002A, 6003A, 6004A, 6005A, 6006A
Rail Cutters: 6001B, 6002B, 6003B, 6004B, 6005B, 6006B
Replacement Parts: Groover - 6625, Bearing - B5
Plywood Panel Stile & Rail
| Part # | Pattern | Reveal Width | Cutting Length | Large Dia. |
|---|---|---|---|---|
| 1/2" SHANK | ||||
| 6001X | Round | 1/4" | 1" | 1-5/8" |
| 6002X | Ogee | 3/8" | 7/8" | 1-5/8" |
Conversion Kit for Full Size Stile & Rail: 6000X
