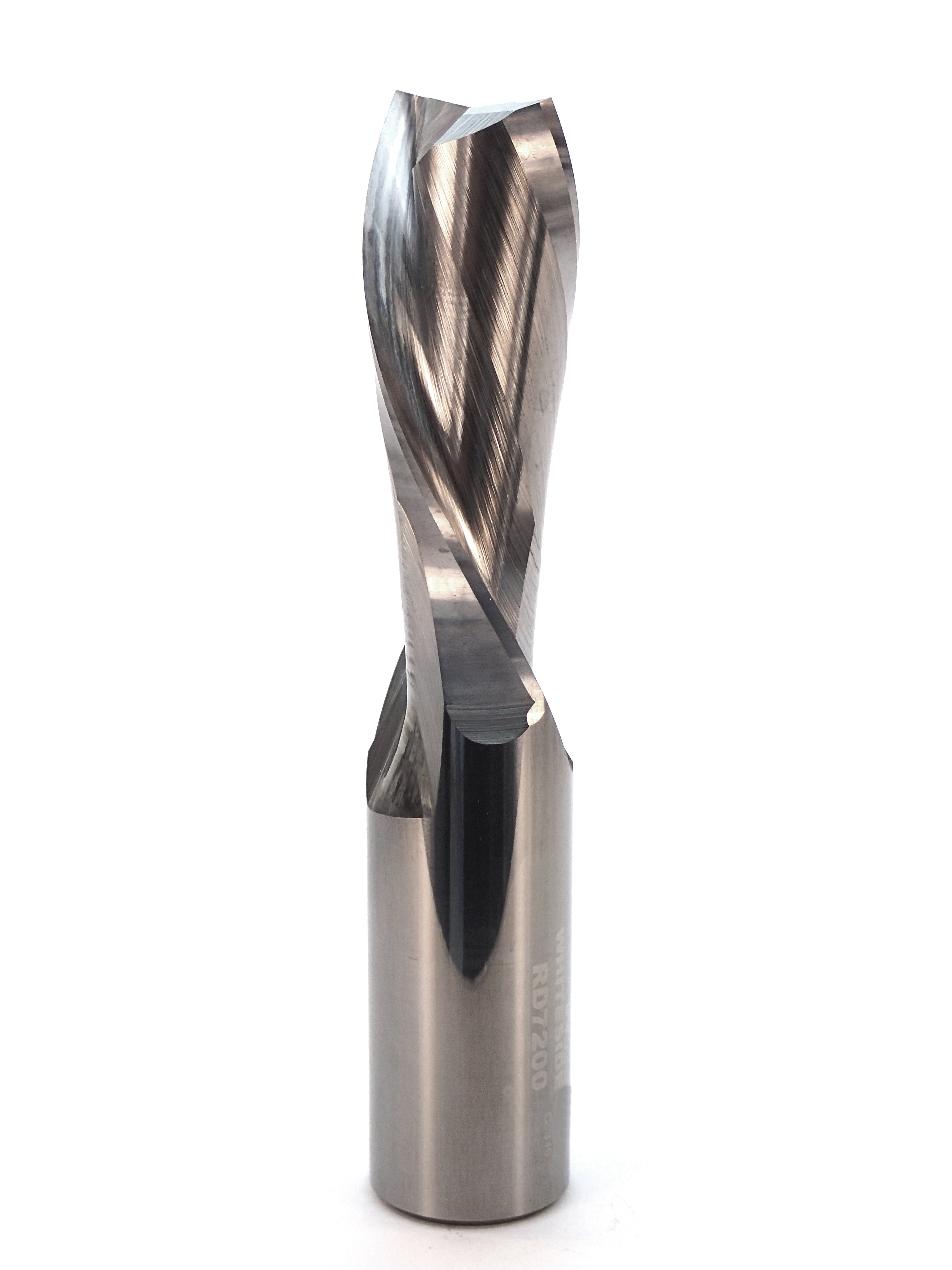

RD7200

Down Cut Spiral

3/4"SH, 3/4"CD, 2"CL

Product Description



Materials: Natural woods, composites, hard plastics, thin aluminum

Recommended RPM: 12,000-14,000 (max 18,000)

Spiral bits provide a shear cutting edge that leaves a smoother cut than standard router bits. The down cut spiral design provides the best top surface edges, ejecting chips away from the router when routing through material. This design also decreases the tendency to lift thin/small work pieces during CNC routing.

  • TOOL SPECS: Solid carbide, down cut spiral with 3/4" cutting diameter, 3/4" shank, 2" cutting length, and 4" overall length for use in routers with a 3/4" collet.
  • DOWN CUT SPIRAL: Down Cut Spirals ensure a clean edge on the side of the material closest to the router. Perfect for clean, top edges in handheld routing or CNC applications.
  • HELIX: Ideal for shallow grooves, dados, and inlays with a handheld router. The spiral helix offers a shearing action for clean, crisp cuts while outperforming standard straight bits.
  • CLEAN FINISH: The downward cutting action eliminates tearout when cutting grooves, dados, slots, and pockets in veneer, laminates, and plywood for precise woodworking results.
  • STABILITY: Great for holding thin sheets or small pieces in place during CNC routing operations, ensuring precision and stability. Ejects chips away from the router when cutting through material.
  • MATERIALS: Performs best with hardwoods, softwoods, plywood, MDF, laminates, veneers, and hard plastics for versatile woodworking applications.
Up Cut Part # Down Cut Part # Cutting Dia. Cutting Length Overall Length
1/4" SHANK
RU1600 RD1600 1/8" 1/2" 2"
RU1700 RD1700 5/32" 5/8" 2"
RU1800 RD1800 3/16" 3/4" 2-1/2"
RU1900 RD1900 7/32" 3/4" 2-1/2"
RU2075 RD2075 1/4" 3/4" 2-1/2"
RU2100 RD2100 1/4" 1" 2-1/2"
5/16" SHANK
RU3100 RD3100 5/16" 1" 2-1/2"
3/8" SHANK
RU4075 RD4075 3/8" 3/4" 2-1/2"
RU4100 RD4100 3/8" 1" 2-1/2"
RU4125 RD4125 3/8" 1-1/4" 3"
1/2" SHANK
RU4675 RD4675 1/4" 3/4" 3"
RU4700 RD4700 1/4" 1" 3-1/4"
RU4800 RD4800 9/32" 1" 3"
RU4850 RD4850 5/16" 1" 3"
RU4875 RD4875 3/8" 3/4" 3"
RU4900 RD4900 3/8" 1-1/4" 3"
RU4950 RD4950 7/16" 1-1/4" 3"
RU5100 RD5100 1/2" 1" 3"
RU5125 RD5125 1/2" 1-1/4" 3"
RU5150 RD5150 1/2" 1-1/2" 3-1/2"
RU5200 RD5200 1/2" 2" 4"
5/8" SHANK
RU6150 RD6150 5/8" 1-1/2" 3-1/2"
RU6200 RD6200 5/8" 2" 4"
3/4" SHANK
RU7150 RD7150 3/4" 1-1/2" 4"
RU7200 RD7200 3/4" 2" 4"
RU7300 RD7300 3/4" 3" 5"
RU7306 RD7306 3/4" 3" 6"
